Fuzzy Variables

Example
Fuzzy Sets, Fuzzy Values and Fuzzy Variables

A fuzzy variable defines the language that will be used to discuss a fuzzy concept such as temperature, pressure, age, or height. The class FuzzyVariable is used to create instances of a fuzzy variable, providing a name (for example, temperature), the units of the variable if required (for example, degrees C), the universe of discourse for the variable (for example a range from 0 to 100), and a set of primary fuzzy terms (like hot, cold and warm) that will be used when describing the specific fuzzy concepts associated with the fuzzy variable.

The name and units are strings that are mainly used for textual display in a program.

The universe of discourse defines a set of upper and lower bounds for the values of the fuzzy sets used to describe the concepts of the fuzzy variable.

The fuzzy terms are described using a term name such as hot, along with a fuzzy set that represents that term. The fuzzy variable terms along with a set of system supplied and user defined fuzzy modifiers, as well as the operators 'and' and 'or' (fuzzy set intersection and union respectively) and the left and right parentheses provide the basis for a grammar that allows one to write fuzzy linguistic expressions that describe fuzzy concepts in an english-like manner. For example, the expression

(very hot or warm) and slightly cold

consists of the terms hot, warm and cold, along with the fuzzy modifiers very and slightly. These expressions are used when defining fuzzy values, the specific fuzzy concepts that are appropriate for the problem at hand. A fuzzy value associates a fuzzy set with a fuzzy variable to describe the fuzzy concept. The fuzzy sets can be described using the linguistic expressions definable for the fuzzy variable and restricted by the universe of discourse for the variable. The fuzzy sets can also be described using an instance of a FuzzySet object or by sets of (x, y) pairs.

The BNF description of the syntax of such expressions can be written as:

<LExpr> ::= <LTerm> | <LExpr> OR <LTerm>
<LTerm> ::= <modExpr> | <LTerm> AND <modExpr>
<modExpr> ::= MODIFIER <modExpr> | <element>
<element> ::= PRIMARY-TERM | ( <LExpr> )

where

MODIFIER is a valid system supplied or user defined modifier (not, very, slightly, etc.)
PRIMARY-TERM is a term defined in the fuzzy variable

Note that this gives and higher precedence than or and that modifiers are basically unary operators with the highest precedence. One can control the order of the expression evaluation through the use of parenthesis ( and ). Also note that linguistic expressions are case insensitive.

Example

The following code shows a simple example of creating a FuzzyVariable and a FuzzyValue:

    // There are many ways to define the terms for the fuzzy variable
    // Here we use 2 of those methods:
    //   1. using arrays of x and y values to define the shape of the fuzzy set
    //   2. using already defined terms of the fuzzy variable and linguistic
    //      expressions
    double xHot[] = {25, 35};
    double yHot[] = {0, 1};
    double xCold[] = {5, 15};
    double yCold[] = {1, 0};
    FuzzyValue fval = null;
    ...
    // Create new fuzzy variable for temperature with Universe of discourse
    // from 0 to 100 and units "C".
    FuzzyVariable temp = new FuzzyVariable("temperature", 0, 100, "C");
    ...
    // Add three terms hot, cold and medium
    temp.addTerm("hot", xHot, yHot, 2);
    temp.addTerm("cold", xCold, yCold, 2);
    // Note: once a term is added it can be used to define other terms
    temp.addTerm("medium", "not hot and not cold");
    ...
    // Now we can define fuzzy values using the terms in the fuzzy variable.
    // Note: fuzzy values can also be created using fuzzy sets, etc. and not
    //       just with linguistic expressions.
    fval = new FuzzyValue(temp, "very hot or cold");
    System.out.println(fval);

The output from this would be:

FuzzyVariable         -> temperature [ 0.0, 100.0 ] C
Linguistic Expression -> very hot or cold
FuzzySet              -> { 1/5 0/15 0/25 0.01/26 0.04/27 0.09/28 0.16/29 0.25/30
                            0.36/31 0.49/32 0.64/33 0.81/34 1/35 }

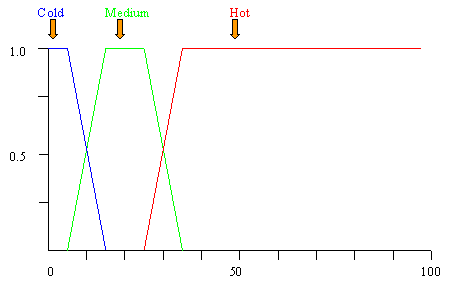

After this has been done we will have defined a fuzzy variable that has the 3 terms hot, cold and medium defined and shown below graphically.

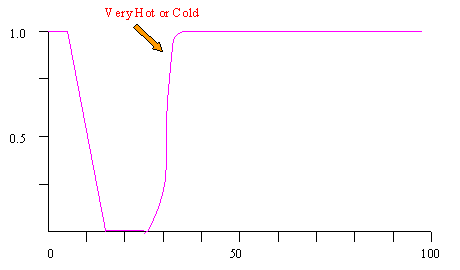

The fuzzy value that we created, temperature is very hot or cold, will have a graphical depiction as follows:

Other sections will provide more information about modifiers, fuzzy sets and fuzzy values.
