nrc.fuzzy
Class BelowModifier

java.lang.Object
  |
  +--nrc.fuzzy.ModifierFunction
        |
        +--nrc.fuzzy.BelowModifier

All Implemented Interfaces:

java.io.Serializable

public class BelowModifier

extends ModifierFunction

implements java.io.Serializable

Concrete implementation of the below modifier. Consider the following example:

Description	Visual Representation
Unmodified fuzzy value: this is the unmodified fuzzy value to which the modifier is applied.

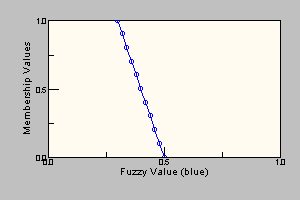

After Below modifier applied: the BELOW modifier identifies the first x value at which the maximum value is reached. All membership values above this point are set to zero and all membership values below this value are set to 1-y. For convex fuzzy sets this gives an intuitive result.

See Also:

ModifierFunction, Modifiers, Serialized Form

Field Summary

Fields inherited from class nrc.fuzzy.ModifierFunction

DELTA_X, DELTA_Y, deltaX, deltaY, NUMBER_OF_POINTS, numberOfPoints, precisionControlType

Constructor Summary

BelowModifier()

BelowModifier(java.lang.String s)

Method Summary

nrc.fuzzy.FuzzySet	call(nrc.fuzzy.FuzzySet a) Creates a new FuzzySet by applying the below modifier to an existing FuzzySet.
nrc.fuzzy.FuzzyValue	call(nrc.fuzzy.FuzzyValue fv) Creates a new FuzzyValue by applying the below modifier to an existing FuzzyValue.

Methods inherited from class nrc.fuzzy.ModifierFunction

concentrateDilute, expandSet, getName, setDeltaXPrecision, setDeltaYPrecision, setNumberOfPointsPrecision, setPrecisionControlType

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

BelowModifier

public BelowModifier()

BelowModifier

public BelowModifier(java.lang.String s)

Method Detail

call

public nrc.fuzzy.FuzzyValue call(nrc.fuzzy.FuzzyValue fv)

Creates a new FuzzyValue by applying the below modifier to an existing FuzzyValue. Below identifies the first x value at which the maximum value is reached. All membership values above this point are set to zero and all membership values below this value are set to 1-y. For convex fuzzy sets this gives an intuitive result.

Specified by:

call in class ModifierFunction

Parameters:

fv - the fuzzy value to which the below modifier is applied.

See Also:

ModifierFunction

call

public nrc.fuzzy.FuzzySet call(nrc.fuzzy.FuzzySet a)

Creates a new FuzzySet by applying the below modifier to an existing FuzzySet. Below identifies the first x value at which the maximum value is reached. All membership values above this point are set to zero and all membership values below this value are set to 1-y. For convex fuzzy sets this gives an intuitive result.

Specified by:

call in class ModifierFunction

Parameters:

a - the fuzzy set to be modified

See Also:

ModifierFunction
