第五章

決定

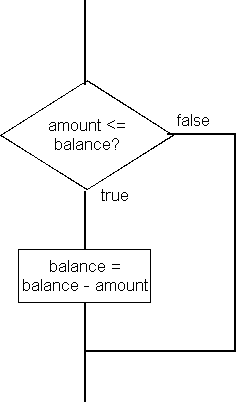

5.1 `if` 敘述

if (amount <= balance)
   balance = balance - amount;

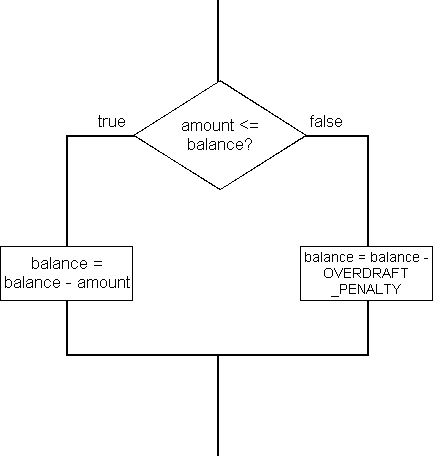

`if`/`else` 敘述

if (amount <= balance)
   balance = balance - amount;
else
   balance = balance - OVERDRAFT_PENALTY;

Block 敘述

if (amount <= balance)
{
   double newBalance = balance - amount;
   balance = newBalance;
}

Syntax 5.1. `if` 敘述

if(condition) statement if(condition) statement
else statement

例題:

if (amount <= balance)
   balance = balance - amount;

if (amount <= balance)
   balance = balance - amount;
else
   balance = balance - OVERDRAFT_PENALTY;

用途:

To execute a statement when a condition is true or false

Syntax 5.2. Block 敘述

{ statement statement . . . }

例題:

{

   double newBalance = balance - amount;
   balance = newBalance;

}

用途:

To group several statements together to form a single statement

敘述型式

簡單敘述
balance = balance - amount;
複雜敘述
if (balance >= amount) balance = balance - amount;Also while, for, etc. (see chapter 6)
Block 敘述
{ double newBalance = balance - amount; balance = newBalance; }

5.2 數值的比較

關係運算子

Java	Math Notation	Description
`>`	>	Greater than
`>=`	≥	Greater than or equal
`<`	<	Less than
`<=`	≤	Less than or equal
`==`	=	Equal
`!=`	≠	Not equal

相等和指定

== 測試是否相等:
if (x == 0) . . // if x equals zero
= 指定一數值給一變數:
x = 0; // assign 0 to x
注意不要用錯

浮點數比較

由於精確度有限，浮點數的計算可能產生捨入誤差(roundoff error)，如下列程式碼:

double r = Math.sqrt(2);
double d = r * r -2;
if (d == 0)
   System.out.println(
      "sqrt(2)squared minus 2 is 0");
else
   System.out.println(
      "sqrt(2)squared minus 2 is not 0 but " + d);

執行後的結果為:
sqrt(2)squared minus 2 is not 0 but 4.440892098500626E-16
因此，不要用 == 比較浮點數

浮點數比較

兩數幾乎相等, 假如

|x - y| <= ε
ε 是一很小的數, 如 10^-14
假如 x, y 很大或很小, 不足以判斷, 就必須用

|x - y| / max(|x|, |y|) <= ε
但是But if one of the numbers is zero, don't divide by max(|x |, |y|)

字串比較

不要用 == 比較字串!
if (input == "Y") // WRONG!!!
用 equals 方法:
if (input.equals("Y"))
== 測試身份, equals 測試內容是否相同
大小寫不拘時 (如 "Y" or "y") 用 equalsIgnoreCase()
if (input.equalsIgnoreCase("Y"))

依字典的次序比較(Lexicographic Comparison)

Java 所用的次序，數字在前，接著大寫字母，再接著小寫字母。

s.compareTo(t) < 0 表示:
在字典中 s 是在 t 之前
"car" 在 "cargo" 之前
"cargo" 在 "cathode" 之前
所有大寫字母都在小寫字母之前, 如:
"Hello" 在 "car" 之前

依字典的次序比較

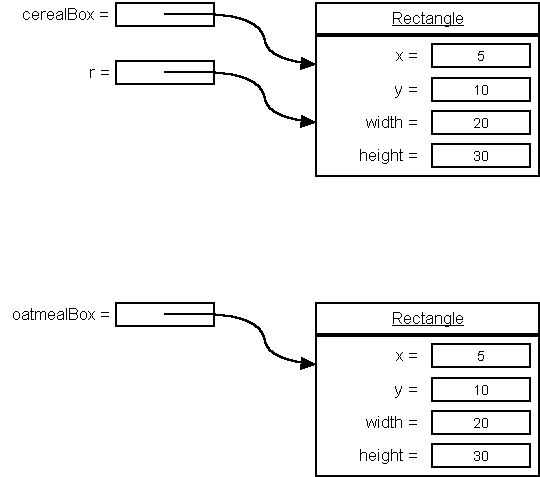

物件比較

== 測試身份, equals 測試內容是否相同
Rectangle cerealBox = new Rectangle(5, 10, 20, 30); Rectangle oatmealBox = new Rectangle(5, 10, 20, 30); Rectangle r = cerealBox;
cerealBox != oatmealBox,
but
cerealBox.equals(oatmealBox)
cerealBox == r
Caveat: equals must be defined for the class (see chapter 11)

物件比較

The `null` Reference

null reference refers to no object at all
可用於測試:
if (account == null) . . .
用 ==, 不是用 equals, 測試 null
假如用者按下取消鍵 showInputDialog 傳回 null:
String input = JOptionPane.showInputDialog("..."); if (input != null) { ... }
null 不是空字串 ""

5.3 多重選擇(Multiple Alternatives)

if (condition1) statement1; else if (condition2) statement2; else if (condition3) statement3; else statement4;
The first matching condition is executed.
Order matters.

File Earthquake.java


/**
   A class that describes the effects of an earthquake.
*/
public class Earthquake
{
   /**
      Constructs an Earthquake object.
      @param magnitude the magnitude on the Richter scale
   */
   public Earthquake(double magnitude)
   {
      richter = magnitude;
   }

   /**
      Gets a description of the effect of the earthquake.
      @return the description of the effect
   */
   public String getDescription()
   {
      String r;
      if (richter >= 8.0)
         r = "Most structures fall";
      else if (richter >= 7.0)
         r = "Many buildings destroyed";
      else if (richter >= 6.0)
         r = "Many buildings considerably damaged, some collapse";
      else if (richter >= 4.5)
         r = "Damage to poorly constructed buildings";
      else if (richter >= 3.5)
         r = "Felt by many people, no destruction";
      else if (richter >= 0)
         r = "Generally not felt by people";
      else
         r = "Negative numbers are not valid";
      return r;
   }

   private double richter;
}

File EarthquakeTest.java


import javax.swing.JOptionPane;

/**
   A class to test the Earthquake class.
*/
public class EarthquakeTest
{
   public static void main(String[] args)
   {
      String input = JOptionPane.showInputDialog(
         "Enter a magnitude on the Richter scale:");
      double magnitude = Double.parseDouble(input);
      Earthquake quake = new Earthquake(magnitude);
      System.out.println(quake.getDescription());
      System.exit(0);
   }
}

多重選擇

測試的先後次序會影儁結果Order matters:
if (richter >= 0) // always passes r = "Generally not felt by people"; else if (richter >= 3.5) // not tested r = "Felt by many people, no destruction"; . . .
不要漏了 else if (richter >= 8.0) r = "Most structures fall"; if (richter >= 7.0) // omitted else--ERROR r = "Many buildings destroyed

多層分支(Nested Branches)

分支內的分支

if (condition1)
{
   if (condition1a)
      statement1a;
   else
      statement1b;
}
else
   statement2;

所得稅申報

假如婚姻狀況是單身

所得總額超過	但未超過	稅額為	總額超過
$0	$21,450	15%	$0
$21,450	$51,900	$3,217.50 + 28%	$21,450
$51,900		$11,743.50 + 31%	$51,900

假如婚姻狀況是已婚

所得總額超過	但未超過	稅額為	總額超過
$0	$35,800	15%	$0
$35,800	$86,500	$5,370.00 + 28%	$35,800
$86,500		$19,566.00 + 31%	$86,500

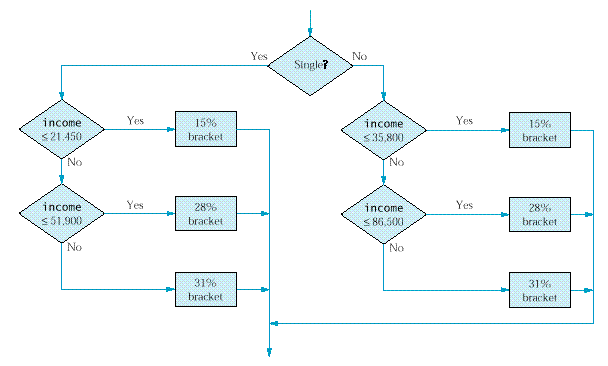

所得稅申報流程圖

File TaxReturn.java


/**
   A tax return of a taxpayer in 1992.
*/
class TaxReturn
{
   /**
      Constructs a TaxReturn object for a given income and
      marital status.
      @param anIncome the taxpayer income
      @param aStatus either SINGLE or MARRIED
   */
   public TaxReturn(double anIncome, int aStatus)
   {
      income = anIncome;
      status = aStatus;
   }

   public double getTax()
   {
      double tax = 0;

      if (status == SINGLE)
      {
         if (income <= SINGLE_CUTOFF1)
            tax = RATE1 * income;
         else if (income <= SINGLE_CUTOFF2)
            tax = SINGLE_BASE2
               + RATE2 * (income - SINGLE_CUTOFF1);
         else
            tax = SINGLE_BASE3
               + RATE3 * (income - SINGLE_CUTOFF2);
      }
      else
      {
         if (income <= MARRIED_CUTOFF1)
            tax = RATE1 * income;
         else if (income <= MARRIED_CUTOFF2)
            tax = MARRIED_BASE2
               + RATE2 * (income - MARRIED_CUTOFF1);
         else
            tax = MARRIED_BASE3
               + RATE3 * (income - MARRIED_CUTOFF2);
      }

      return tax;
   }

   public static final int SINGLE = 1;
   public static final int MARRIED = 2;

   private static final double RATE1 = 0.15;
   private static final double RATE2 = 0.28;
   private static final double RATE3 = 0.31;

   private static final double SINGLE_CUTOFF1 = 21450;
   private static final double SINGLE_CUTOFF2 = 51900;

   private static final double SINGLE_BASE2 = 3217.50;
   private static final double SINGLE_BASE3 = 11743.50;
   private static final double MARRIED_CUTOFF1 = 35800;
   private static final double MARRIED_CUTOFF2 = 86500;

   private static final double MARRIED_BASE2 = 5370;
   private static final double MARRIED_BASE3 = 19566;

   private double income;
   private int status;
}

File TaxReturnTest.java


/**
   A tax return of a taxpayer in 1992.
*/
class TaxReturn
{
   /**
      Constructs a TaxReturn object for a given income and
      marital status.
      @param anIncome the taxpayer income
      @param aStatus either SINGLE or MARRIED
   */
   public TaxReturn(double anIncome, int aStatus)
   {
      income = anIncome;
      status = aStatus;
   }

   public double getTax()
   {
      double tax = 0;

      if (status == SINGLE)
      {
         if (income <= SINGLE_CUTOFF1)
            tax = RATE1 * income;
         else if (income <= SINGLE_CUTOFF2)
            tax = SINGLE_BASE2
               + RATE2 * (income - SINGLE_CUTOFF1);
         else
            tax = SINGLE_BASE3
               + RATE3 * (income - SINGLE_CUTOFF2);
      }
      else
      {
         if (income <= MARRIED_CUTOFF1)
            tax = RATE1 * income;
         else if (income <= MARRIED_CUTOFF2)
            tax = MARRIED_BASE2
               + RATE2 * (income - MARRIED_CUTOFF1);
         else
            tax = MARRIED_BASE3
               + RATE3 * (income - MARRIED_CUTOFF2);
      }

      return tax;
   }

   public static final int SINGLE = 1;
   public static final int MARRIED = 2;

   private static final double RATE1 = 0.15;
   private static final double RATE2 = 0.28;
   private static final double RATE3 = 0.31;

   private static final double SINGLE_CUTOFF1 = 21450;
   private static final double SINGLE_CUTOFF2 = 51900;

   private static final double SINGLE_BASE2 = 3217.50;
   private static final double SINGLE_BASE3 = 11743.50;
   private static final double MARRIED_CUTOFF1 = 35800;
   private static final double MARRIED_CUTOFF2 = 86500;

   private static final double MARRIED_BASE2 = 5370;
   private static final double MARRIED_BASE3 = 19566;

   private double income;
   private int status;
}

使用布林(boolean)式

`boolean` 型式

George Boole (1815-1864): 邏輯研究的先驅者
式子值 amount < 1000 是 true 或 false.
boolean 型式: true 或 false

斷定性方法(Predicate Method)

回值的型式為 boolean
例子:
public boolean isOverdrawn() { return balance < 0; }
用於測試條件中
if (harrysChecking.isOverdrawn()) ...
Character 類別中, 有用的斷定性方法有:
isDigit isLetter isUpperCase isLowerCase
if (Character.isUpperCase(ch)) ...

布林運算子

&& and
|| or
! not
if (0 < amount && amount < 1000) ...
if (input.equals("S") || input.equals("M")) ...

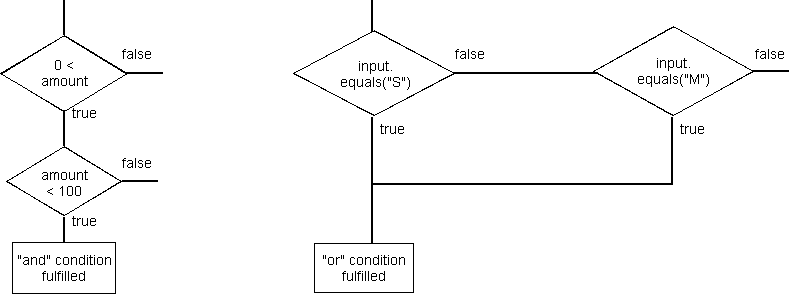

`&&` 和 `||` 運算子

真實表(Truth Tables)

A	B	A `&&` B
`true`	`true`	`true`
`true`	`false`	`false`
`false`	Any	`false`

A	B	A `\|\|` B
`true`	Any	`true`
`false`	`true`	`true`
`false`	`false`	`false`

A	`!` A
`true`	`false`
`false`	`true`

De Morgan's 定律

否定一複雜條件容易引起混淆:
if (!(0 < amount && amount < 1000))
De Morgan's 定律說明
!(A && B) 和 !A || !B 相同!(A || B) 和 !A && !B 相同
注意 ! 移入括弧內 && 和 || 對調
(!(0 < amount && amount < 1000)) 即
!(0 < amount) || !(amount < 1000) , 即
0 >= amount || amount >= 1000
注意 < 的相反是 >=

布林變數

private boolean married;
設定的是真實值:
married = input.equals("M");
在條件中使用:
if (married) ... else ... if (!married) ...
不要測試布林變數是否等(或不等)於真實值之一, 如:
if (married == true) // DON'T if (married == false) // DON'T if (married != false) // NO!!!
